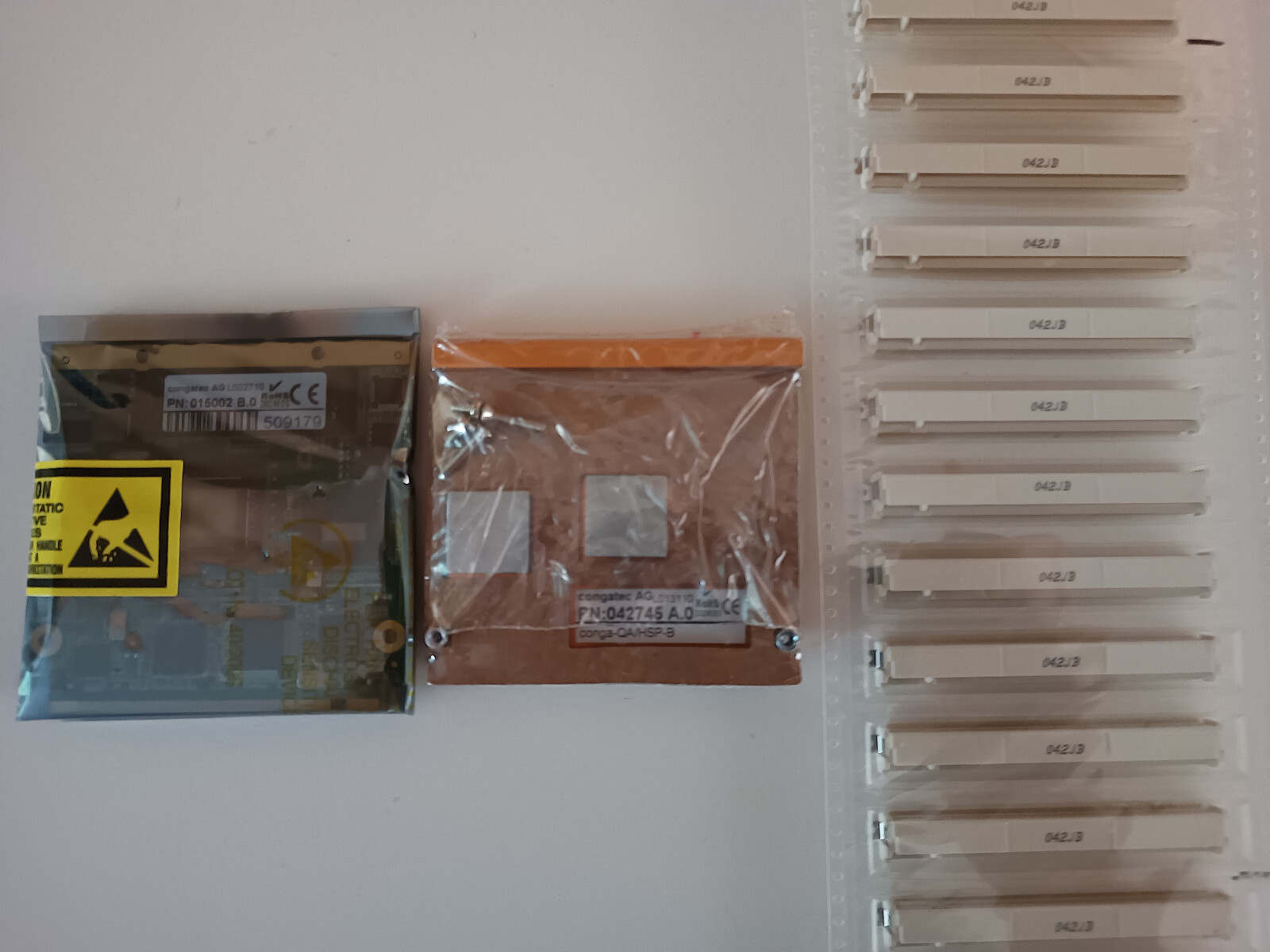

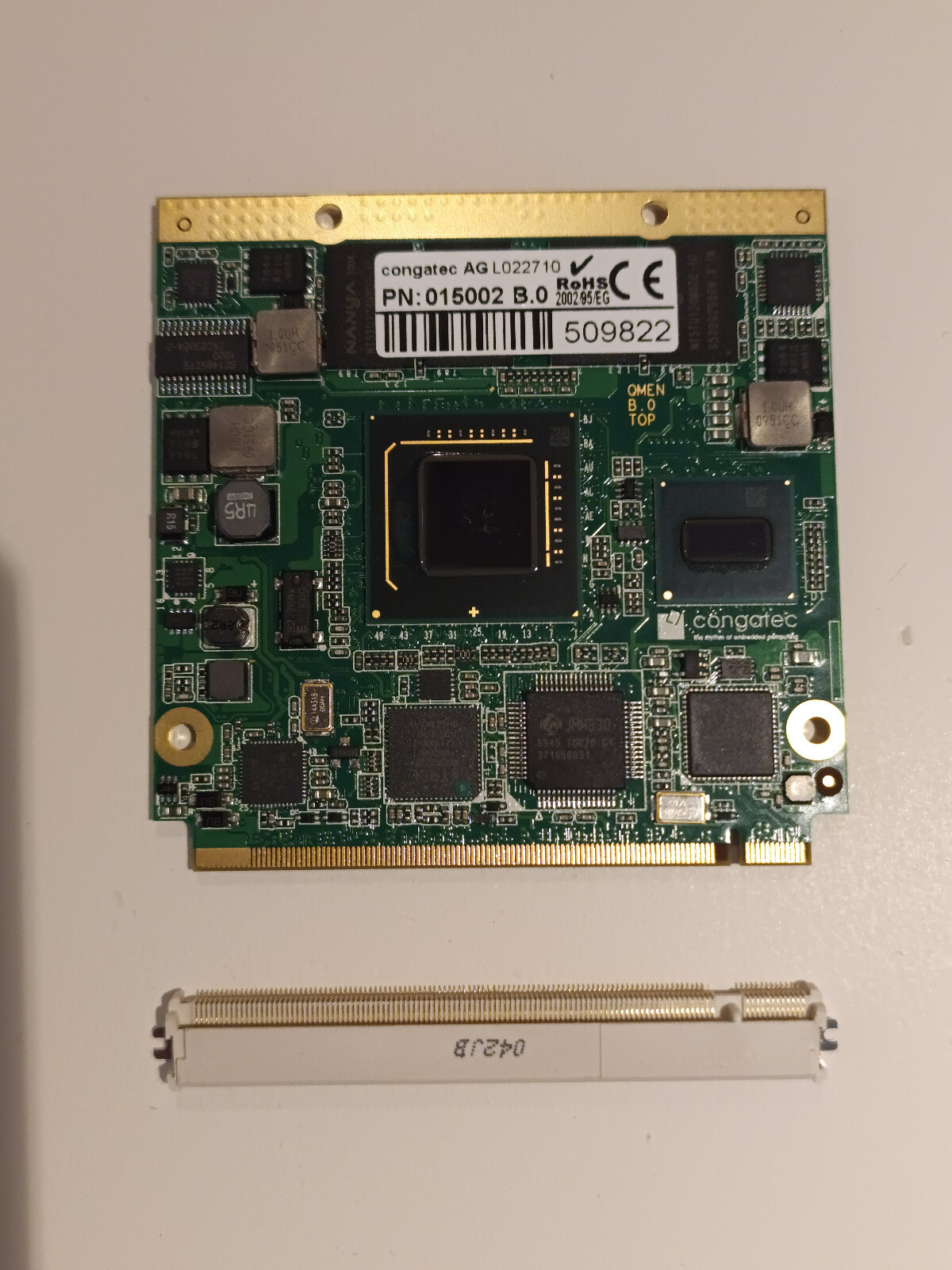

Single Board PC, Congatec conga-QA/Z530-1G, PN 015002
Specifications
| Rücknahme Akzeptiert | ReturnsNotAccepted |
| Speichertyp | DDR2 SDRAM |
| CPU-Taktfrequenz | 1,6 GHz |
| Kompatible CPU-Marke | Atom Z530 |
| Formfaktor | 70x70mm |
| Mainboard-Marke | Congatec |

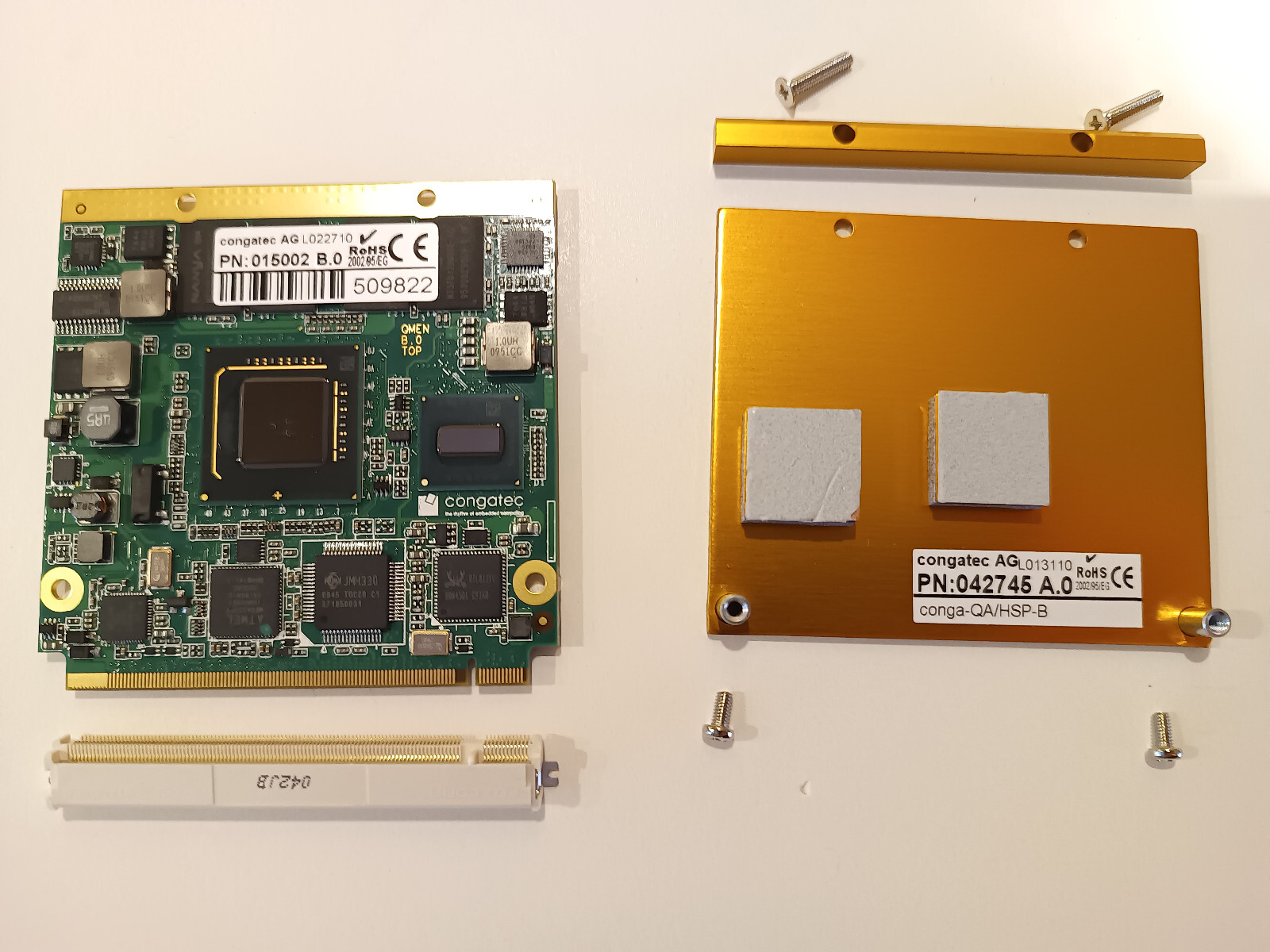

Congatec conga-QA/Z530-1G , PN 015002incl. connector and heatsink Formfactor Qseven Form Factor, 70x70 mm CPU Intel ® Atom™ processor Z530 1.6 GHz, 533 MHz FSB and memory bus speed, 512k L2 cache, 45 nm,with Hyper-Threading Technology DRAM Up 1 GByte on-board DDR2 memory with 400/533 MT/s Chipset Intel ® SCH US15W Ethernet Gigabit Ethernet Realtek RTL8111 I/O Interfaces 8x USB 2.0, 1x SATA, 1x SDIO, 1x PCIe, I²C Bus, 1x USB client, LPC bus Sound Intel ® High Definition Audio (Intel® HD Audio) Graphics Intel® Graphics Media Accelerator 500 (Intel ® GMA 500), up to 256 MByte frame buffer supporting Direct X 9.0E and Open GL 2.0 Video Decode Acceleration Full hardware acceleration for MPEG2, MPEG4, H.264, WMV9 and VC1 Motion Video Support Single channel 112MHz LVDS transmitter, support for flat panels with 1x18 and 1x24 bit data mapping up to resolutions of 1366x768 pixel, Single channel SDVO interface, supports resolutions up to 1280x1024 pixel Dual independent display support congatec Board Controller Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control Embedded BIOS Features OEM Logo, OEM CMOS Defaults, LCD Control, Display Auto Detection, Backlight Control, Flash Update, based on AMIBIOS8 ® Power Management ACPI 3.0 compliant, Smart Battery Management Operating Systems Microsoft® Windows7, Windows ® XP, Windows® XP embedded, Windows® CE 6.0, LINUX, QNX Power Consumption Typ. application ~5 Watt @ 5V Temperature Operating: 0 to +60°C, Storage: -20 to +80°C Humidity Operating: 10 to 90% r. H. non cond., Storage: 5 to 95% r. H. non cond. Size 70 x 70mm
