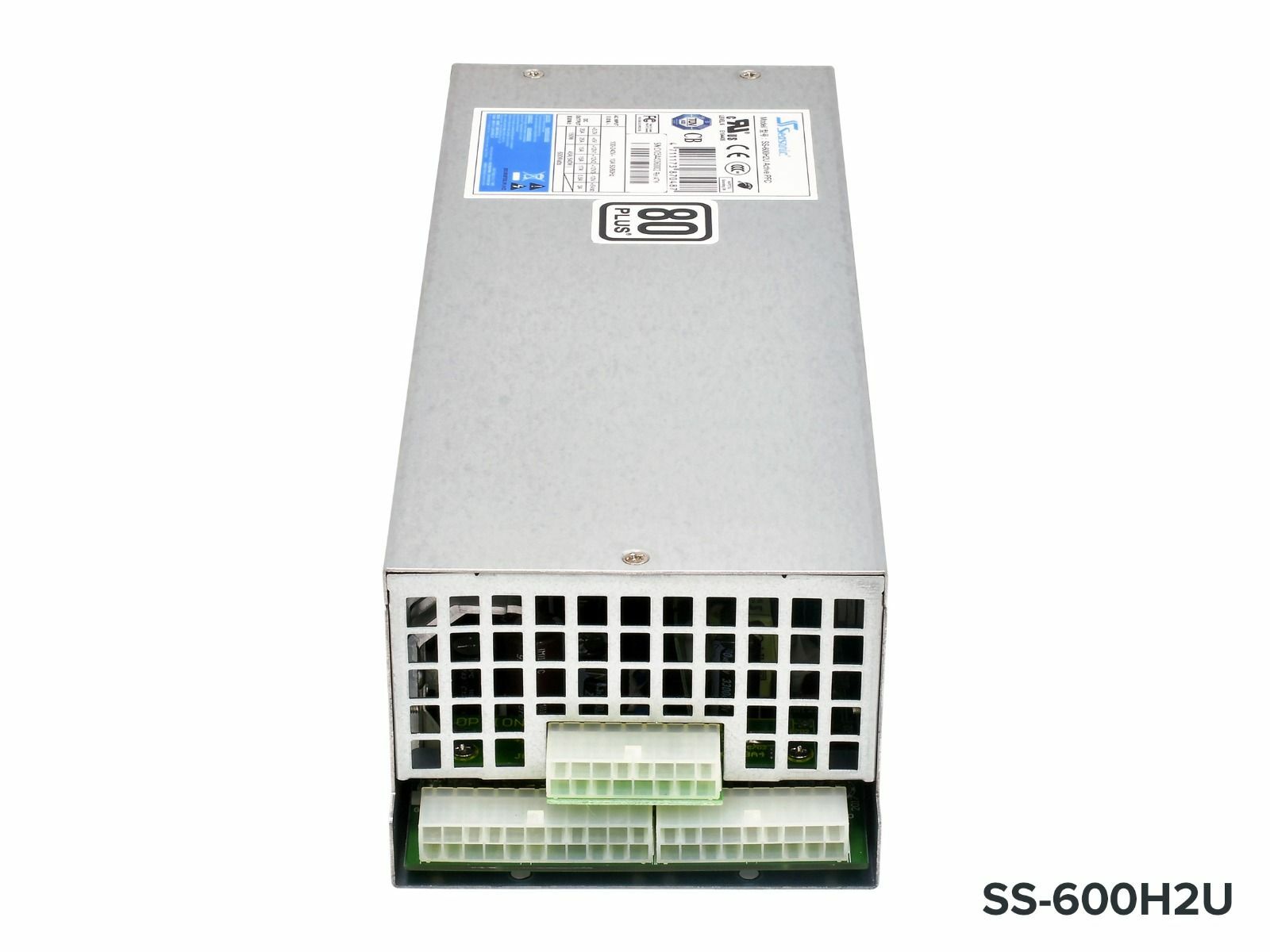

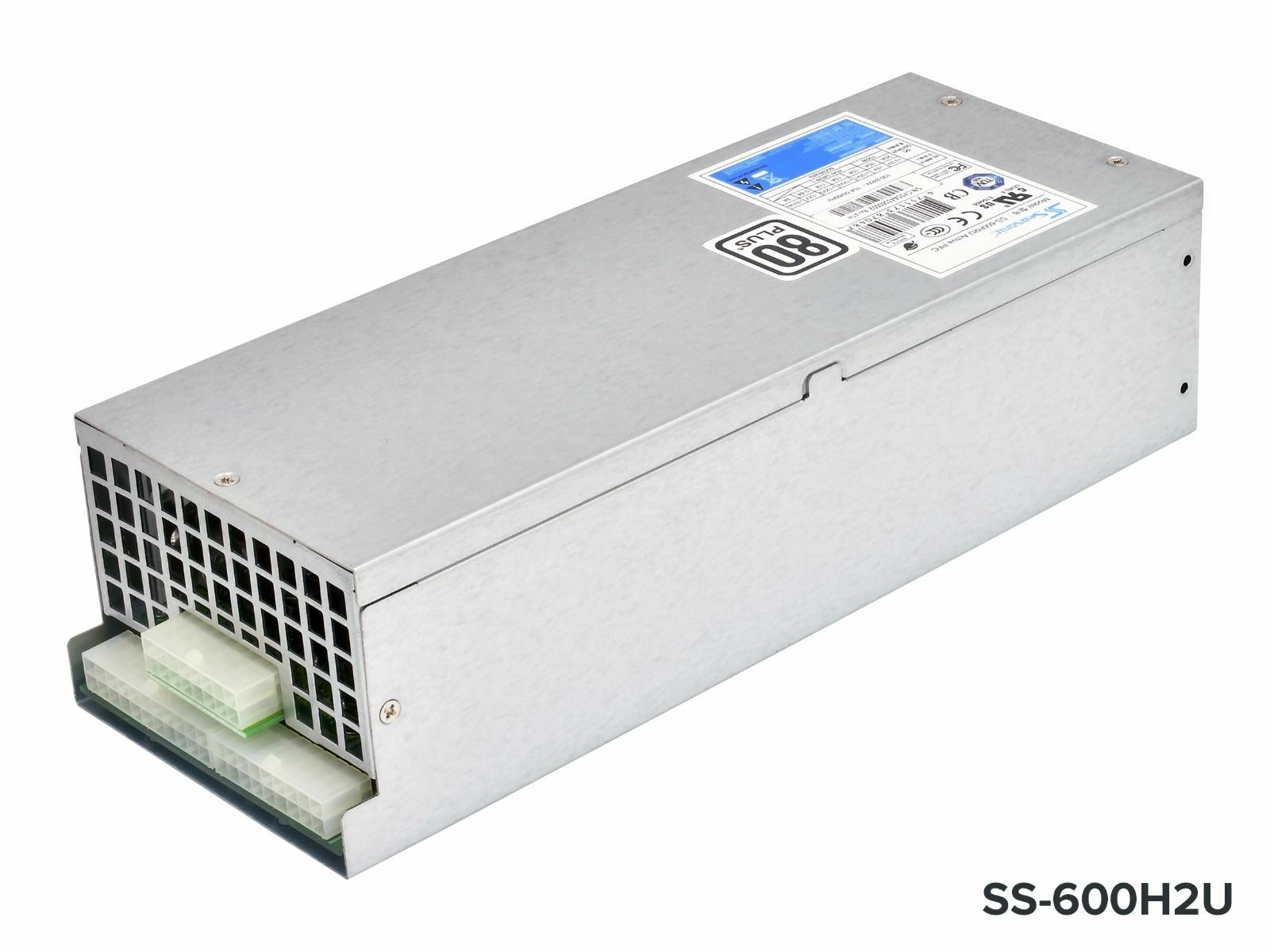

Seasonic H2U 2U POWER SUPPLY 600W PSU 80+ Plus Certified Active PFC Full Modular
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | Seasonic H2U 2U |
| Type | PSU |
| Maximum Power | 600 W |
| MPN | SS-600H2U |
| Brand | Sea Sonic |
Normal 0 false false false EN-US X-NONE HE H2U 2U POWER SUPPLY This full AC input range industrial level power supply offers the total power capacity of up to 600 Watts and uses APFC (Active Power Factor Correction) circuit design. It has quality components built in to provide 80 PLUS® efficiency and long term reliability. This product complies with IEC1000-3-2 and EN61000-3-2 PFC harmonics standards and Seasonic’s proprietary Smart and Silent Fan Control (S2FC) makes this unit operate at low noise levels. Most importantly, the SS-600H2U is a fully modular power supply that will make installation straightforward and easy. SPECIFICATIONS SS-600H2U Specifications Input frequency 50 / 60 Hz Hold up time, full load 16 ms (typical) Efficiency (220 V AC - 240 V AC, full load) 83 % (typical) Efficiency (100 V AC - 120 V AC, full load) 80 % (typical) Dielectric withstand, input to frame/ground 1800 VAC, 1 sec Dielectric withstand, input to output 1800 VAC, 1 sec Line regulation ± 1 % (typical) Load regulation ± 5 % (typical) Cross regulation ± 5 % (typical) MTBF, full load @ 25 °C ambient (excl. DC fan) > 100,000 hours Active Power Factor Correction 99 % (typical) DC Outputs +3.3 V +5 V +12 Combined -12 V +5 Vsb Total continuous power Input Type 20 A 25 A 45 A 0.8 A 3 A 600 W 100–240 VAC 150 W (max.) 544 W 9.6 W 15 W
