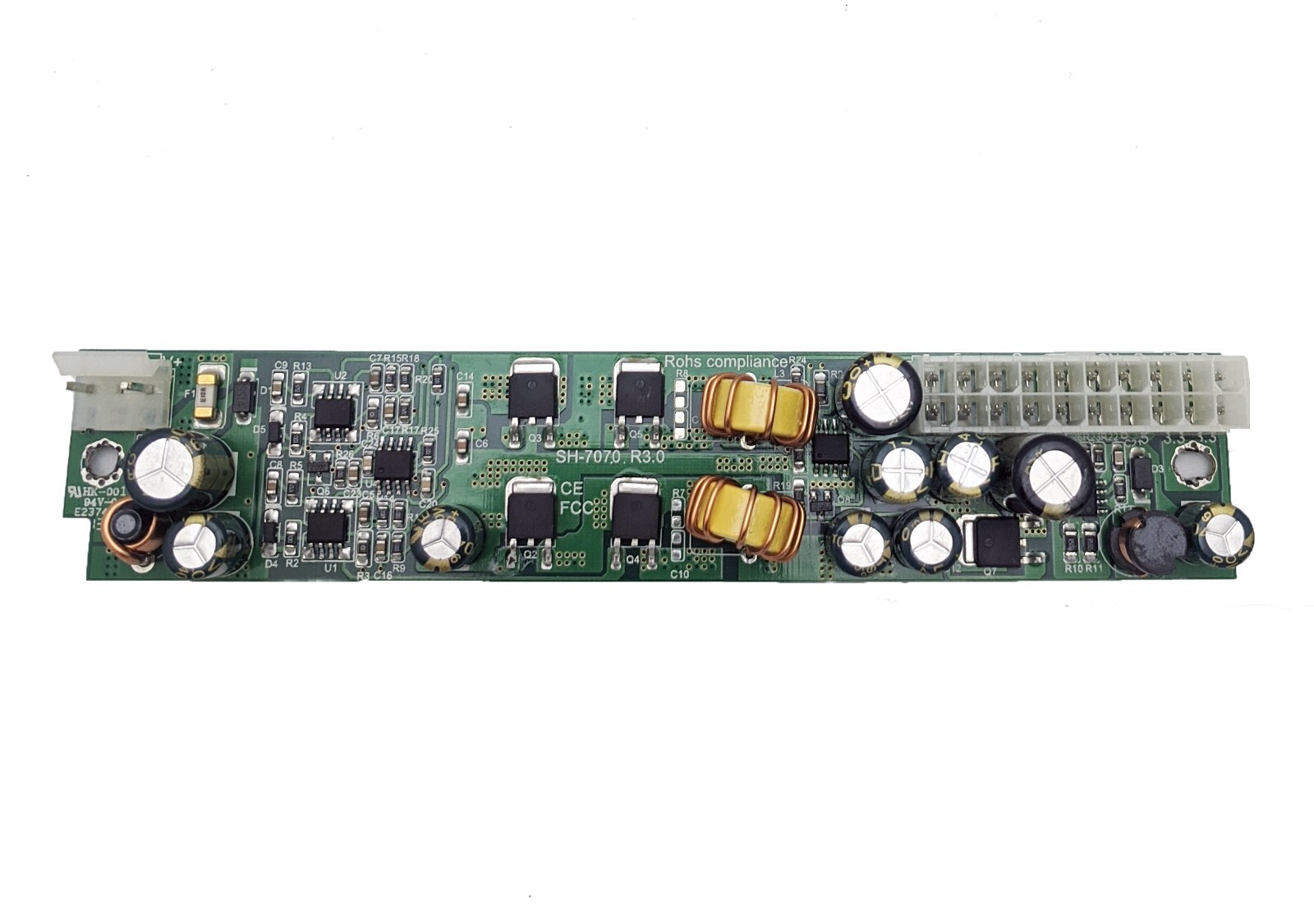

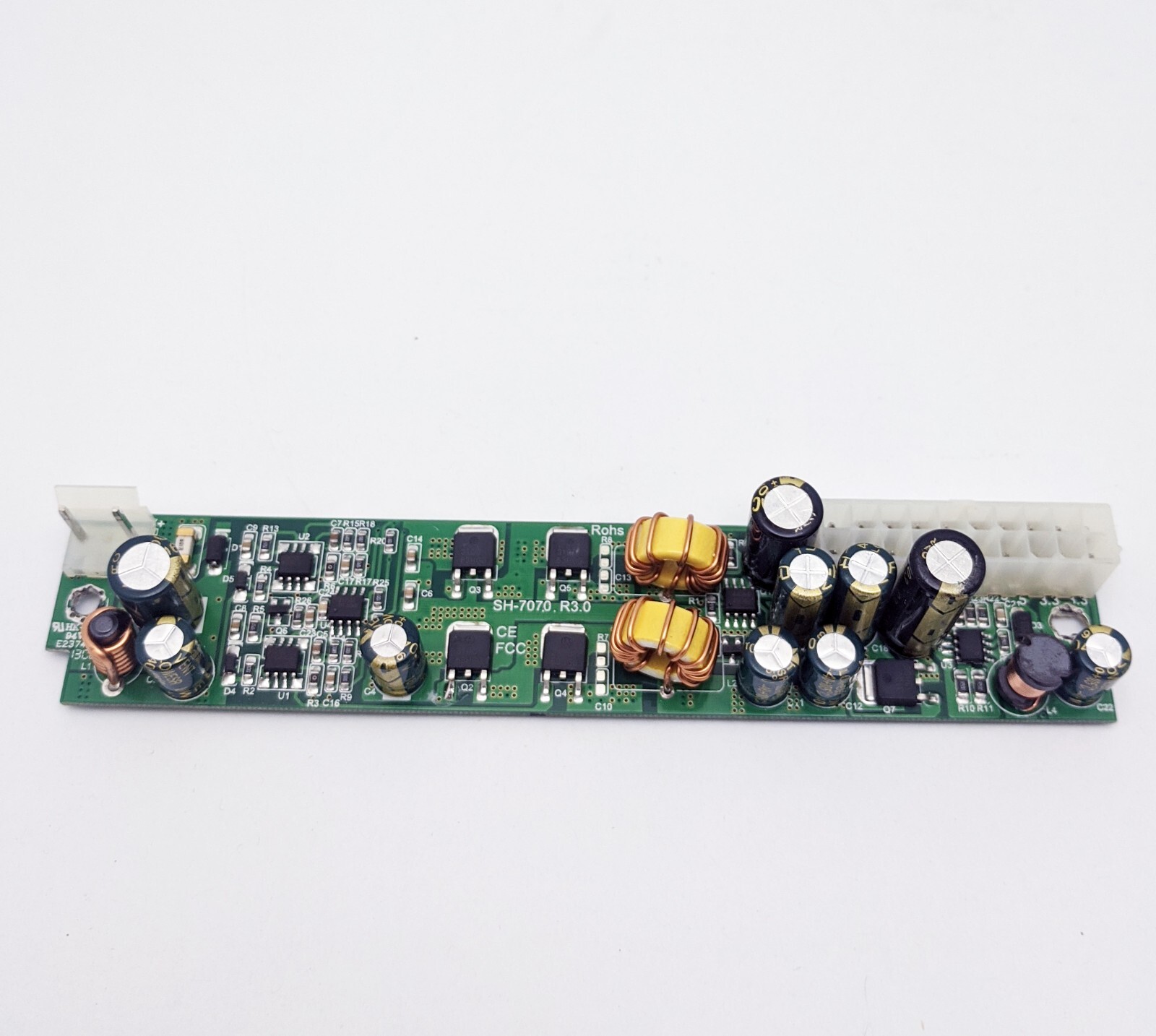

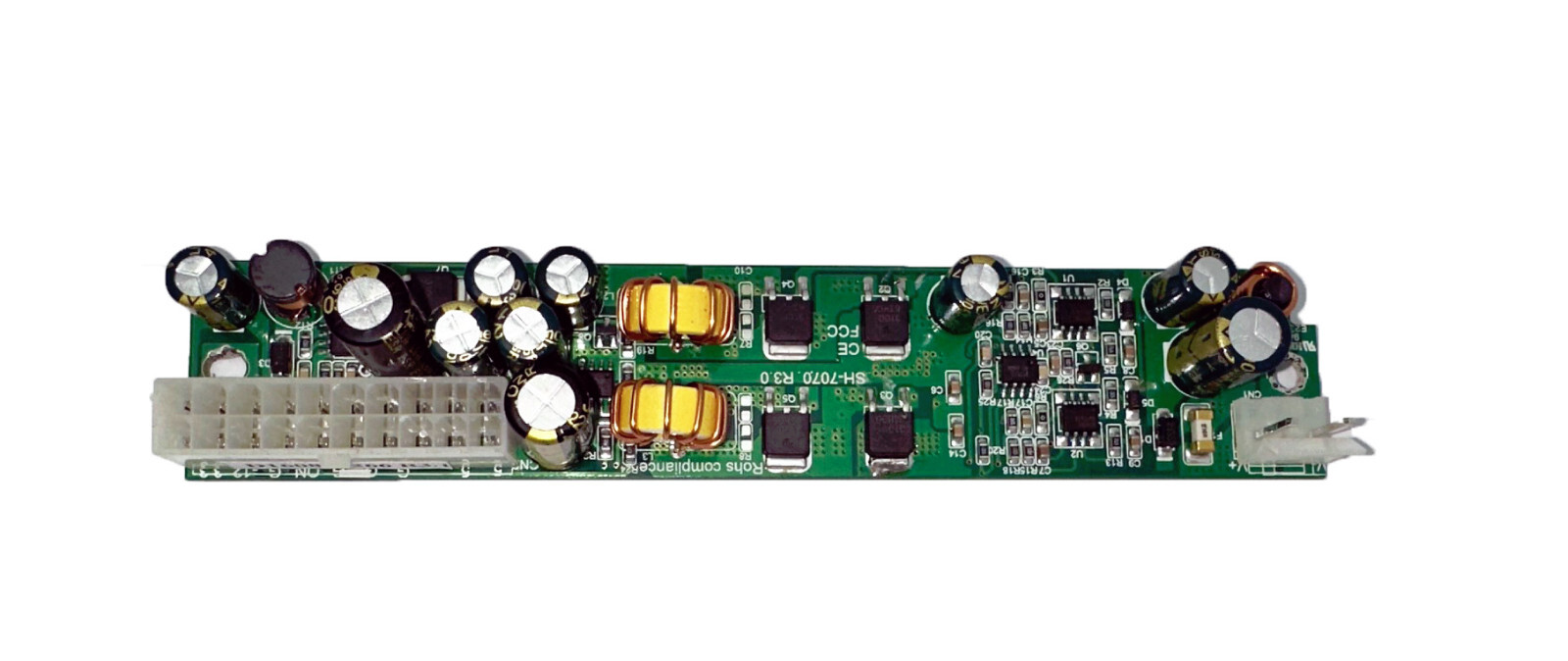

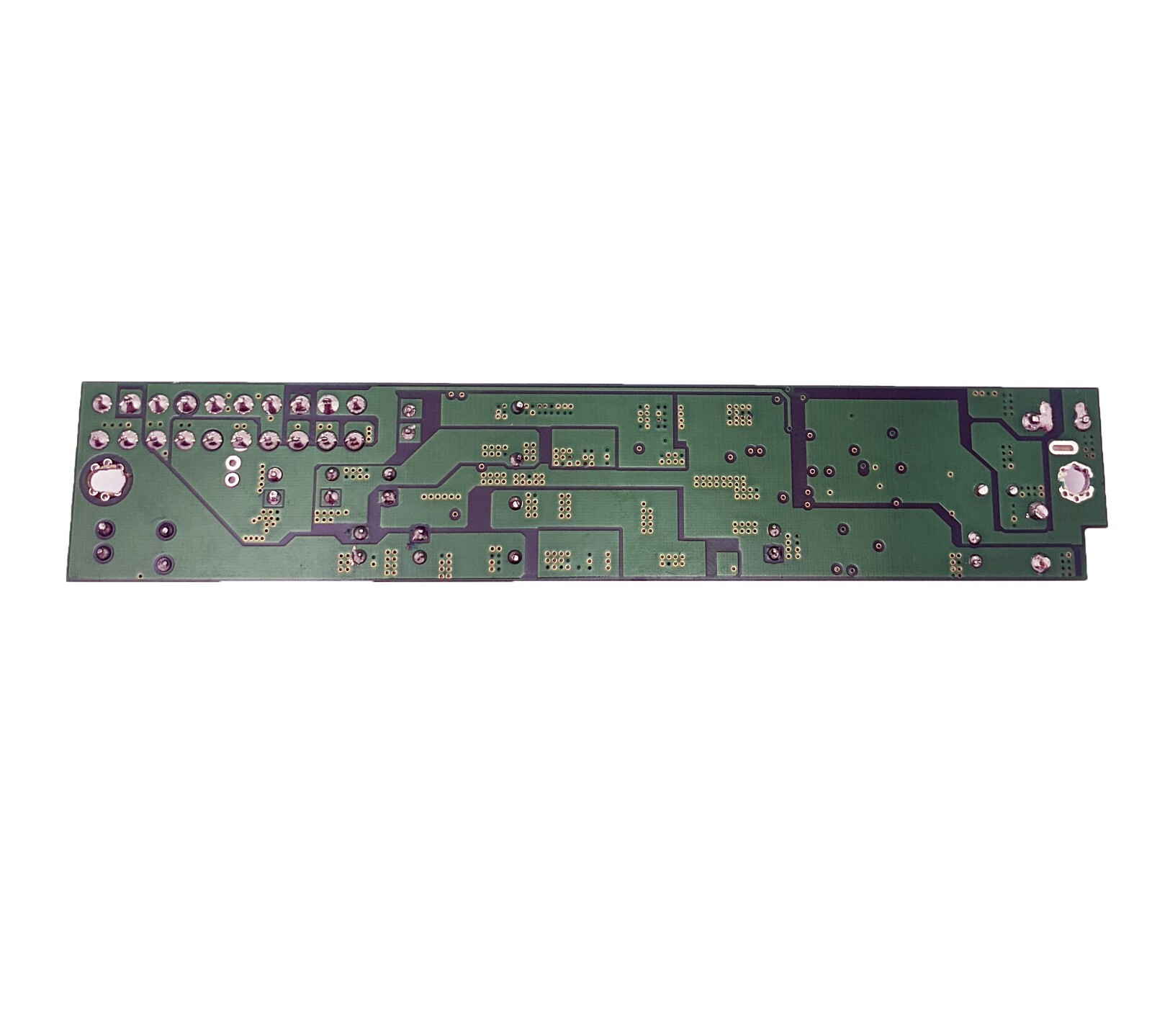

90W DC 12V to DC ATX PSU Modular Power Supply Adapter/Converter Mini ITX Board
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Connectors | 20+4 Pin |
| Compatible Brand | Universal |
| Brand | HIGH POWER® |
| Voltage Compatibility | 12 V |
| Form Factor | ATX |
| Type | Power Supply |
| Maximum Power | 90 W |
| Color | Blue PCB |
| Features | Cold Start |

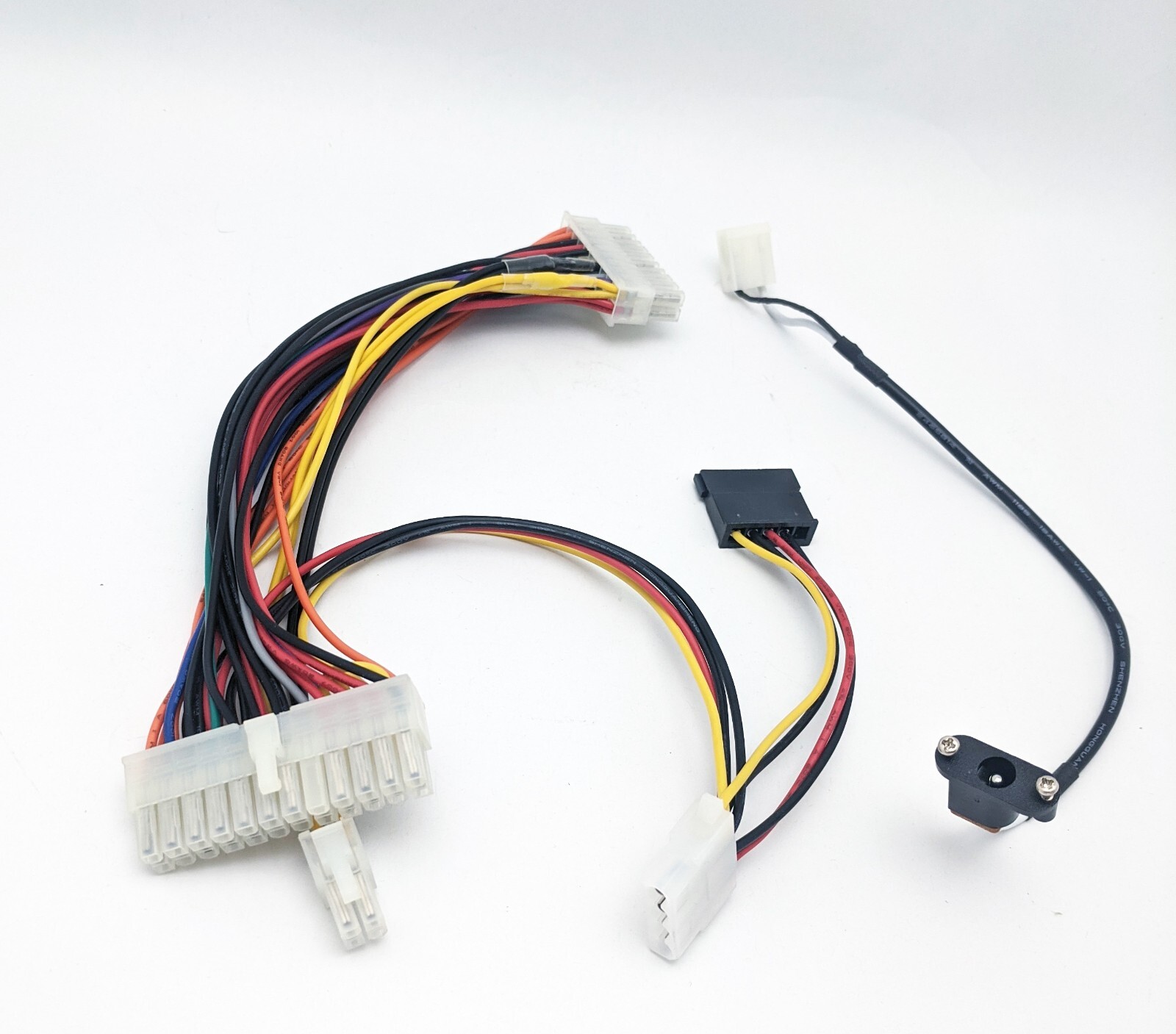

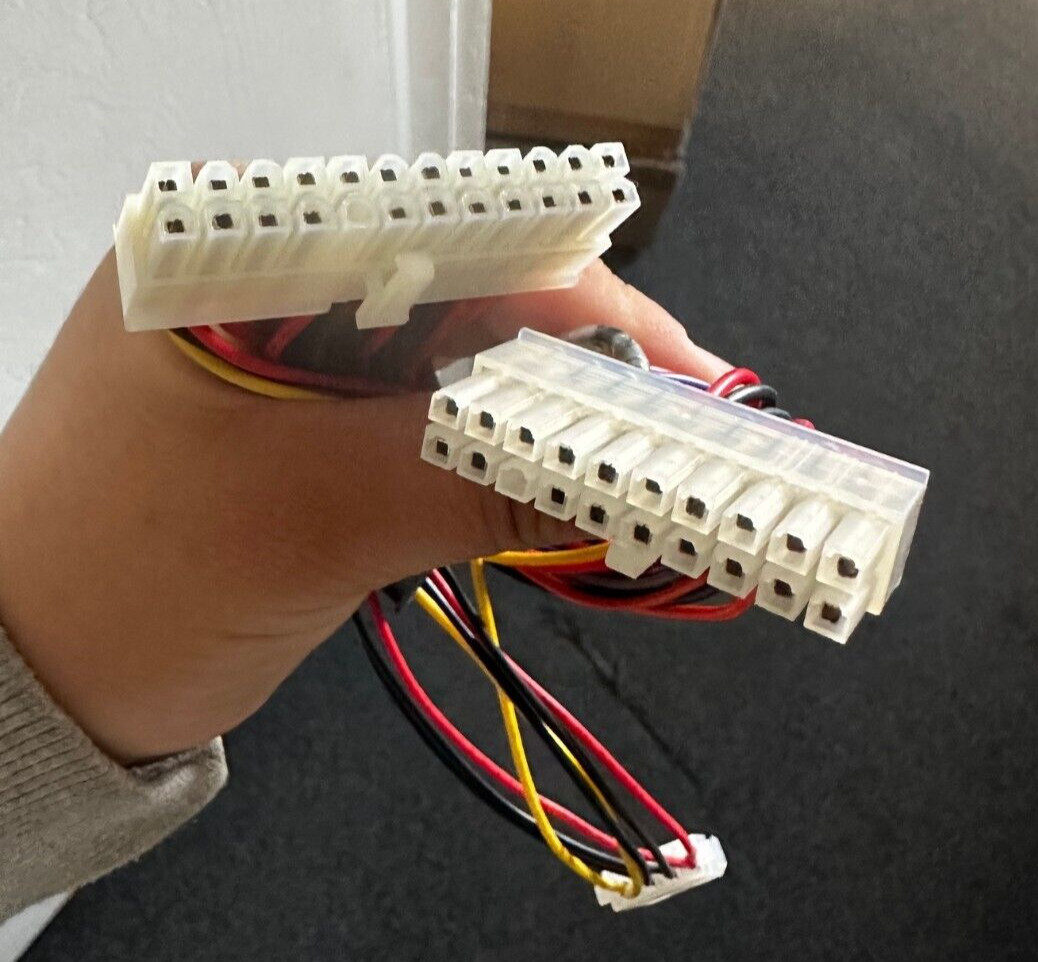

We are located in Southern California. We ship daily except Saturdays, Sundays, and national holidays.Your package will be shipped with a tracking number. NEW High Quality True 90-Watt 12V DC to ATX Power Supply RoHS / FCC / CE Compliant Fit in Mini ITX Case Compatible with: HIGH POWER® AC to DC Power Adapter DC-DC ATX converter was designed from ground up to fit small form factor ATX boards, allowing enclosure designers to save space while not compromising power requirements.. Total Watts: 90W (Tested to work with Intel Intel Celeron J1900 Quad-Core, as well as other mini ITX CPU/motherboard combo) Internal DC-to-DC fanless ATX Power Supply Specifications • DC Input: 11.4~13.0V, Max 10A/12V • Maximal Inrush current: 45A @12V at 25℃ cold start • Output up to 90W (120W peak) • Ripple and Noise: <120 mV • Load Regulation: +/- 5% • Efficiency: 80% minimum at full load • Multi protection: OLP, OCP & SCP • Operation Temperature: -10 to 50℃ RoHS / FCC / CE Compliant Output Voltage +5V +3.3V +12V -12V +5VSB Rated Load 5.0A 6.0A 3.2A 0.1A 1.0A Peak Load 10A 10A 5.0A 0.5A 1.5A Power Connector Summary: 1 x 20/ 24 pin Dual-Use Main Power Connector 1 x P4 12V Power Connector 1 x Molex Peripheral Power Connector 1 x SATA Power Connector Fit in HIGH POWER® Mini Compact PC Case All you need to complete the power source is to add this energy efficiency 60W HIGH POWER® UL-Safe AC Adapter Store Policy & About us (More on Shipping/ Return Policy / None-USA International Customers)
